A control loading system that looks good on a specification sheet can still fail in the simulator. The usual failure point is not peak force. It is feel – breakaway friction that is too high, force gradients that are too flat, latency that becomes noticeable in reversals, or a mechanical layout that fights the control geometry. If you are deciding how to design control loading for a professional simulator, the work starts with the training or test objective, not the actuator catalog.
How to design control loading around the application
Control loading is the engineered resistance and feedback applied to a pilot or operator input so the control behaves like the real vehicle, subsystem, or mechanism. In aviation, that may mean reproducing stick force per g, breakout force, trim shift, autopilot backdrive behavior, and control feel changes across the envelope. In defense and research environments, it may also include programmable failures, weapon-system cueing, or nonstandard force models under experimental conditions.
That is why the first design question is simple: what exactly must the operator feel, and under what conditions? A training device intended for FAA-qualified operation has a different burden than an engineering simulator used for concept evaluation. One may require repeatable compliance with a known aircraft force model. The other may prioritize rapid tunability and data capture over strict replication of a certified baseline.
Those differences shape nearly every technical decision that follows – actuator sizing, transmission method, sensor selection, software architecture, and redundancy strategy.
Start with the control feel model
A good control loader is built around a force model, not around hardware convenience. That model should define static and dynamic characteristics across the full operating range. At minimum, you need commanded force versus displacement, force versus speed where applicable, trim effects, damping behavior, hard-stop characteristics, and any nonlinear regions such as breakout, detents, soft stops, or bobweight-like effects.
For aircraft controls, the model often needs to vary with flight condition, control law mode, and system status. Elevator feel may change with airspeed, flap position, center of gravity, autopilot engagement, or hydraulic state. Rudder pedal feel may include centering forces, breakout, and asymmetric behavior in failure cases. If those variables are not captured early, the hardware may be adequate but the simulation will still feel wrong.
This is also where trade-offs appear. A wide operating envelope with many nonlinear conditions usually benefits from a servo-controlled electric loader with high update rates and strong software configurability. A simpler application with fewer mode changes may allow a narrower architecture. The right answer depends on fidelity requirements, maintainability, and how often the force model will be revised.
Mechanical architecture matters as much as control code
When teams discuss how to design control loading, software often gets most of the attention. In practice, mechanical design has equal influence on fidelity. Poor linkage geometry, compliance in the structure, misalignment, or backlash in the drive train will show up immediately in the operator\’s hand or foot.
The first rule is to respect the native kinematics of the controlled device. If the aircraft column moves in an arc, the loading mechanism should either follow that arc directly or account for it without introducing side loads. The same applies to rudder pedals, collective levers, throttles, and side-sticks. Forcing a linear actuator into a geometry that wants rotary motion can create friction, uneven loading, and premature wear.
Stiffness is equally important. Structural deflection absorbs energy and blurs cueing, especially during reversals and high-rate inputs. A frame that is sufficient for static load may still be inadequate dynamically. Engineering margin should account for continuous duty, not just peak bench performance.
Transmission choice also deserves scrutiny. Direct-drive and low-backlash servo arrangements generally support the best fidelity, but they may increase packaging demands or cost. Belt, cable, ball-screw, and geared systems can each work if selected carefully, but every transmission introduces its own compromise in compliance, backlash, maintenance, and reflected inertia.
Size for continuous control, not brochure numbers
A control loader should be sized around the actual duty cycle and the worst credible use case. Peak force by itself is a weak sizing metric. You also need to understand continuous force, thermal behavior, acceleration demands, reflected inertia, and the frequency content of the expected input profile.
For example, a pilot making small, rapid pitch corrections places a different demand on the system than a slow full-travel sweep. The motor, amplifier, and power supply must support both without saturating or softening the feel as components heat up. If the system is intended for multi-shift training use, thermal stability and duty rating matter as much as raw output.
Oversizing is not always the safe answer. Excess motor inertia or an overly aggressive drive train can make it harder to achieve natural feel in fine control regions. The best design balances authority with responsiveness.
Sensors, latency, and servo bandwidth define realism
Professional control loading depends on accurate measurement and fast response. Position, velocity, torque, and system-state feedback all affect the final feel. Low-resolution sensors or noisy feedback loops can make a carefully modeled force law feel mechanical rather than natural.
Encoder selection should match the smallest perceivable motion and the highest expected dynamic rate. Torque measurement may be direct or estimated, but the method must support calibration and repeatability. If the simulator will be used for qualification or engineering test, traceability and long-term stability become more important.
Latency is one of the fastest ways to lose fidelity. The operator may not describe it as latency, but they will describe the result – a soft center, delayed force buildup, or unstable feel in reversals. Control loader design should therefore consider end-to-end delay across the servo loop, host interface, simulation software, and any safety supervision layer. A high-performance actuator cannot compensate for a slow architecture.
Bandwidth should be high enough to reproduce the intended cues without chatter or instability. That takes tuning discipline. An aggressive loop can feel crisp in a lab and become noisy once installed in a full simulator with different structural modes. A conservative loop may be stable but lifeless. The design target is controlled responsiveness, not simply the highest achievable gain.
Safety and failure behavior are part of the design
A control loader is an active force-generating device in direct contact with a human operator. Safety cannot be added at the end. It has to be designed into the mechanics, electronics, and software from the beginning.
That usually means defined force limits, monitored travel limits, emergency stop behavior, fault detection, and a known response to loss of power or communication. The correct fault behavior depends on the application. In some devices, a controlled return to center is appropriate. In others, the safer response is force removal with mechanical restraint or damping. If the simulator supports training for failures, the distinction between commanded failure mode and unintended hazardous fault must stay clear.
Redundancy is another area where application drives architecture. A research rig may accept a simpler approach if supervised by engineers in a controlled environment. A high-availability training device may justify greater redundancy in sensing, braking, or supervisory control. Certification-driven programs often require more formal hazard analysis, documentation, and validation evidence.
Integration is where good designs prove themselves
No control loading system operates alone. It has to work with the host simulator, visual system, flight model, avionics emulation, and often a broader instructor or test environment. That means interface design matters from day one.
The loader should receive the right real-time variables at the right update rate and with deterministic timing. It should also expose status, faults, calibration data, and maintenance information in a way that simplifies integration and support. If software interfaces are treated as an afterthought, commissioning takes longer and troubleshooting becomes expensive.
Mechanical integration is just as critical. Mounting interfaces, service access, cable routing, cooling, and replacement procedures affect lifecycle cost more than many buyers expect. In long-life simulators, maintainability is not a secondary concern. It is part of system performance.

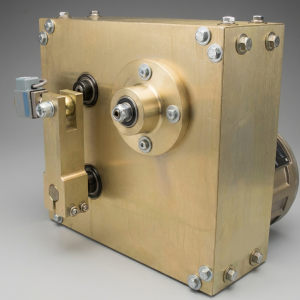

At Servos & Simulation, this is where custom engineering usually makes the difference. A control loader that is matched to the simulator geometry, duty cycle, qualification path, and service expectations will outperform a generic package, even if the generic package appears similar on paper.
Validation should measure feel, not just force
Bench testing is necessary, but it is not sufficient. You can verify force output, travel, repeatability, and latency on instruments and still miss problems that become obvious to a trained operator. Validation should include both measured performance and human evaluation against known reference behavior.
That typically means checking static force curves, dynamic response, thermal drift, backlash, friction, and fault handling, then correlating those results with pilot or operator assessment. For qualification-oriented devices, acceptance criteria should be defined early so the design team is not tuning against moving targets late in the program.
The strongest programs treat validation as an iterative engineering process. Force models get refined. Mechanical preload gets adjusted. Servo tuning changes after installed-system testing. That is normal. What matters is having enough control authority, measurement quality, and design margin to make those refinements without redesigning the platform.
A well-designed control loader should disappear into the training task. When the operator stops noticing the hardware and starts trusting the response, the engineering is doing its job.
