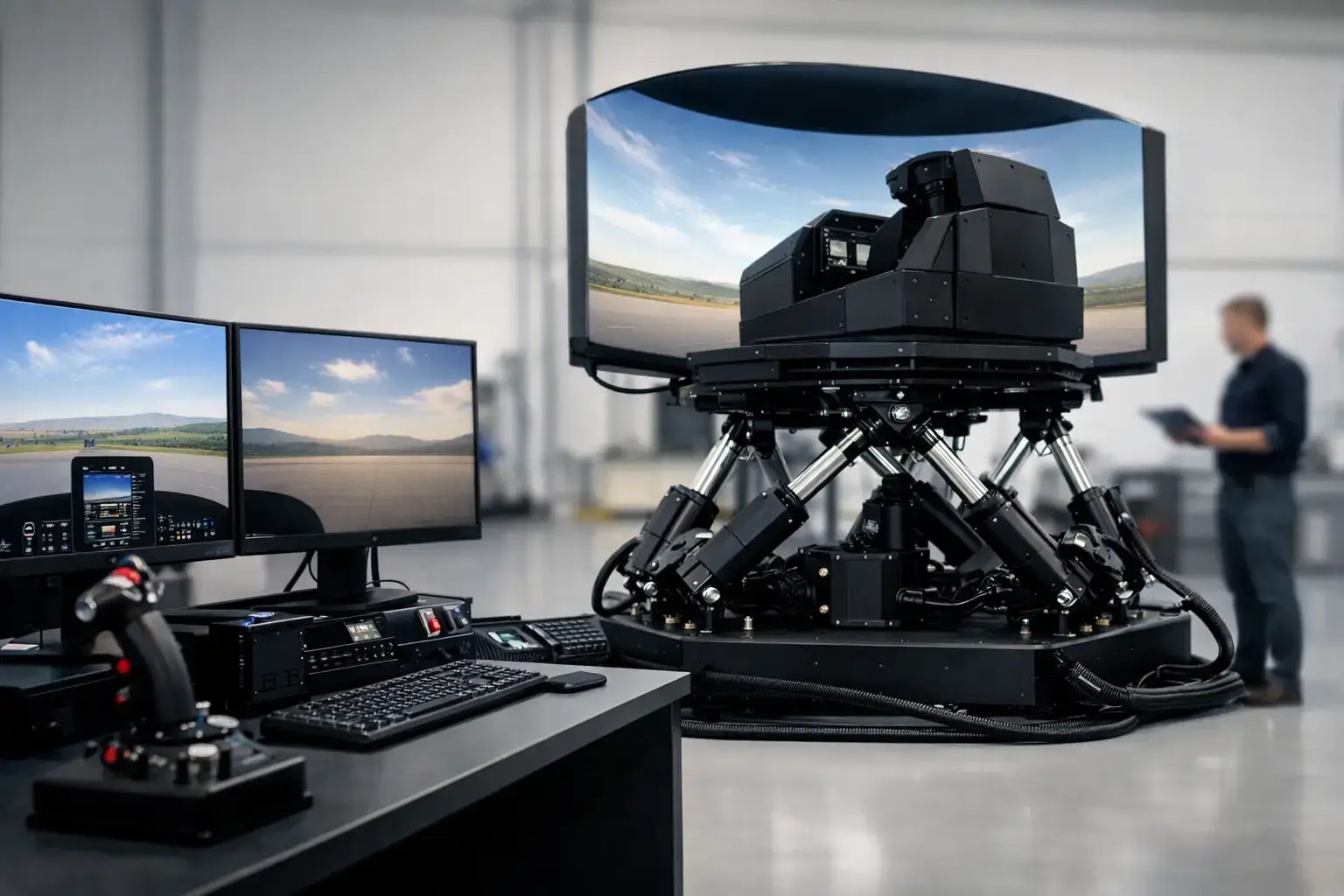

A motion system can meet every catalog specification and still fail the program if its cues are late, its travel limits are misapplied, or its interfaces behave differently inside the completed simulator. A disciplined simulator acceptance testing guide prevents that outcome. It establishes objective evidence that the delivered motion base, control loader, and associated controls perform as specified in their actual operating environment.
For flight, defense, automotive, antenna, and advanced training systems, acceptance testing is not a final demonstration for procurement. It is the controlled transition from installation to operational responsibility. The process must verify measured behavior, failure responses, safety functions, integration performance, and documentation quality before the simulator enters service.
Define Acceptance Before Hardware Arrives
The strongest acceptance programs begin during system definition, not after factory installation. The buyer, simulator manufacturer, integrator, and motion-system supplier should agree on a requirements traceability matrix that connects each contractual requirement to a test method, acceptance threshold, test configuration, responsible party, and record.
This matters because broad requirements such as “realistic motion” or “high-fidelity force feedback” cannot be accepted consistently. They must be converted into measurable criteria. For a six-degree-of-freedom hexapod, that may include commanded versus achieved displacement, velocity, acceleration, payload capacity, actuator synchronization, transport delay, residual vibration, and workspace limits. For a control loading system, it may include force range, breakout force, friction, damping, spring gradient, trim response, backdrive behavior, and control-position accuracy.
Acceptance criteria should also identify operating conditions. A system tested with a lightly loaded test fixture may behave differently with the final cockpit, visual system, cabling, instructors station interfaces, and operational software connected. Test at the declared payload, center of gravity, electrical supply range, and ambient conditions whenever the application requires it.
Build a Test Plan Around the Real System
A useful test plan separates component verification from integrated simulator acceptance. Factory acceptance testing confirms that the manufactured equipment meets defined mechanical, electrical, and control requirements before shipment. Site acceptance testing confirms that it was installed correctly and retains performance after transport, integration, and final configuration.
Neither replaces the other. Factory testing offers a controlled environment and early correction opportunity. Site testing exposes installation-specific issues such as foundation stiffness, cable routing, power quality, electromagnetic interference, software version conflicts, or unexpected loads from the customer’s simulator architecture.
The plan should define prerequisites before any performance run begins. Confirm mechanical installation, fastener torque where applicable, electrical grounding, emergency-stop circuits, network configuration, software revisions, calibration status, payload configuration, and safety-zone clearance. If these basics are not controlled, measured performance data has limited value.
Establish Baselines and Instrumentation
Use calibrated instrumentation appropriate to the requirement. Servo drive diagnostics can provide valuable internal data, but independent measurement may be necessary for contractual verification of position, acceleration, force, or latency. The required level of independence depends on the criticality of the program and the stated acceptance criteria.
Capture a baseline before stress testing. Record actuator home positions, encoder references, control-loader neutral points, system temperatures, supply voltages, communication status, and fault history. Baselines make later troubleshooting faster and distinguish a changed configuration from a genuine equipment issue.
Time synchronization deserves particular attention. When evaluating visual, audio, control-loading, and motion cue timing, all data sources need a common time reference. A low-latency servo system can still produce poor simulator fidelity if the host interface or cueing software introduces inconsistent delay.
Verify Motion Performance Under Representative Load
Motion acceptance should test more than a single-axis move. A hexapod must be evaluated through the coordinated trajectories that represent its intended use. This includes combined surge, sway, heave, roll, pitch, and yaw commands within the approved workspace, as well as washout behavior and return-to-neutral characteristics when those functions are controlled by the motion cueing system.
Start with low-amplitude functional checks, then progress to the full approved envelope. Compare commanded and measured motion for tracking error, repeatability, settling time, overshoot, and vibration. Observe whether performance changes at different positions in the workspace, because actuator geometry, load distribution, and cable management can influence results near travel limits.
Payload testing should reflect both total mass and center-of-gravity location. A platform may safely carry a stated mass, yet the application’s elevated or offset cockpit structure can change dynamic loading significantly. The acceptance record should identify the installed payload configuration rather than treating payload as a generic number.
Evaluate thermal behavior during realistic duty cycles. Short demonstration profiles rarely expose the conditions that matter during a full training schedule. Run representative mission segments, repeated maneuvers, or continuous cycling periods as defined by the program. Monitor actuator, drive, and enclosure temperatures along with any derating or fault indications.
Test Control Loading as a Closed-Loop Experience
Control loading acceptance requires both quantitative measurements and application-level evaluation. Measure force and displacement at the pilot interfaces across the usable travel range. Verify breakouts, gradients, stops, trim commands, damping, friction simulation, and forces generated during key operating modes.
Then verify the system in closed loop with the simulator host. An accurate static force curve is not enough if the commanded force arrives late, oscillates, or conflicts with cockpit controls and software logic. Test transitions between flight phases, failures, autopilot or augmentation modes where applicable, and rapid input reversals. The goal is to confirm stable, repeatable feedback that matches the approved behavior model.
For FAA-related programs, acceptance testing should support the applicable qualification effort without overstating its role. Hardware acceptance does not itself certify a flight training device. It provides controlled evidence that the motion and control-loading equipment is installed, configured, and performing in accordance with the defined system requirements and the data needed for the broader qualification process.
Prove Safety and Fault Response Deliberately
Safety functions should be tested as operating features, not treated as paperwork. Verify emergency-stop behavior, protective stops, travel limits, overspeed detection, communication-loss response, power-loss response, fault annunciation, and safe recovery procedures. The expected response may vary by platform design and program risk assessment, but it must be documented and repeatable.
Test interlocks with the entire simulator ecosystem. For example, confirm what happens when cockpit access is requested, an instructor station commands a freeze, a visual system faults, or facility power is interrupted. Ensure that the motion base and control loaders move to their defined safe state without creating an unsafe or confusing condition for the operator.
Fault injection should be controlled and planned. Do not improvise failures during a customer demonstration. Define the injection point, expected response, personnel positions, abort criteria, and reset procedure in advance. Record the result, including faults that clear correctly but produce unacceptable recovery time or diagnostic ambiguity.
Treat Interfaces and Documentation as Acceptance Items
Many site issues originate at system boundaries. Test discrete I/O, network messages, command scaling, coordinate conventions, enable logic, status feedback, and error handling between the motion controller, simulation host, instructor controls, and facility systems. A sign error in a coordinate transform or an undocumented software revision can invalidate otherwise successful mechanical tests.
The acceptance data package should contain more than a signed checklist. It should include the approved test procedure, as-tested configuration, calibration records, measured results, plots where useful, exceptions, corrective actions, final software versions, parameter backups, and operator or maintenance training records. This package becomes the reference point for future troubleshooting, refurbishment, upgrades, and recurring verification.
Open discrepancies need clear disposition. Some issues require correction before acceptance. Others may be accepted with a documented limitation, scheduled update, or agreed operational workaround. The distinction depends on safety impact, contractual requirements, mission use, and the evidence supporting the decision. What should not happen is an informal handover with unresolved behavior that no one owns.
A Practical Simulator Acceptance Testing Guide for Handover
Before final signoff, conduct a formal review with the technical stakeholders who will support the simulator after commissioning. Confirm that acceptance thresholds were met, exceptions are closed or dispositioned, backups are available, and the customer can operate and recover the equipment within the agreed scope.
For complex systems, this review should also address lifecycle readiness. Identify recommended inspection intervals, consumable or wear items, available spares, remote-support access where permitted, and the process for reporting faults. Servos & Simulation designs and supports motion and control-loading systems with long service life in mind, but lifecycle performance still depends on documented configuration control and trained operators.
A completed acceptance test is not the end of engineering scrutiny. It is the point at which the simulator has a known, defensible performance baseline. Preserve that baseline, revisit it after major software or payload changes, and use it to keep the training device performing as intended long after installation.
