How 6DOF Motion Platforms Work (Deep Dive)

Understanding Six Degrees of Freedom Motion Systems

A 6DOF (Six Degrees of Freedom) motion platform is a system capable of moving in six independent directions—three rotational and three translational—allowing it to replicate real-world motion with high precision.

These platforms are widely used in flight simulation, research, defense, and advanced testing environments where accurate and responsive motion is critical.

What Does 6DOF Mean?

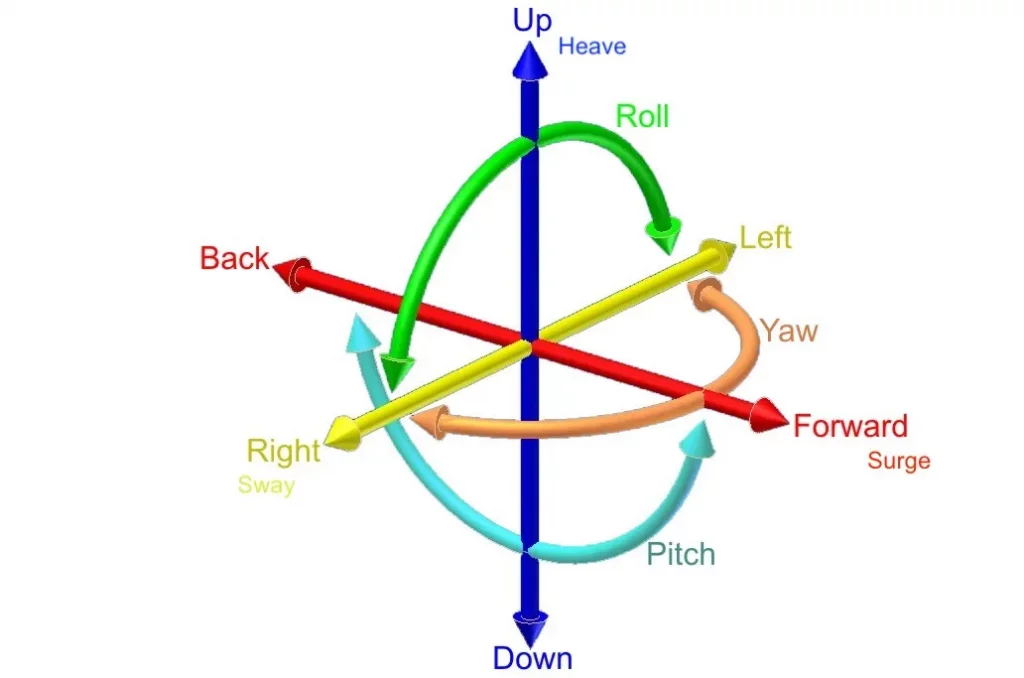

Six Degrees of Freedom refers to the six ways an object can move in three-dimensional space:

Rotational Axes

Roll – rotation around the front-to-back axis
Pitch – rotation around the side-to-side axis
Yaw – rotation around the vertical axis

Translational Axes

Surge – forward and backward movement
Sway – left and right movement
Heave – up and down movement

A 6DOF platform can move simultaneously in all six axes, creating highly realistic motion behavior.

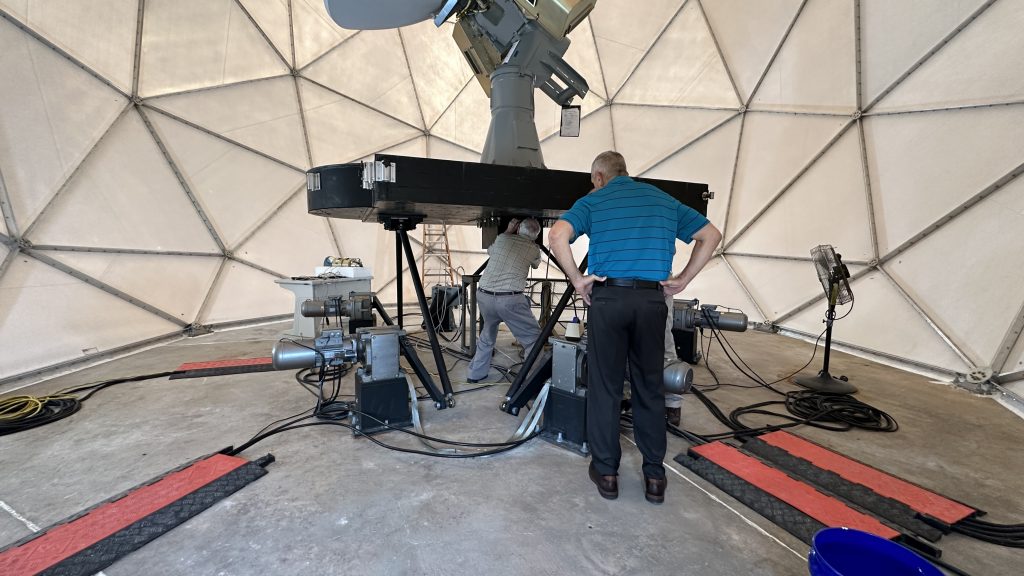

Core Mechanical Design: The Stewart Platform

Most 6DOF motion systems are based on a Stewart platform configuration.

Structure

A fixed base platform
A moving top platform
Six actuators connecting the base and top platforms.

Each actuator can extend or retract independently, controlling the position and orientation of the top platform.

How Motion Is Generated

Motion is created by coordinating the movement of all six actuators.

Example: Pitch Forward

Front actuators retract
Rear actuators extend

Example: Roll Right

Left-side actuators extend
Right-side actuators retract

Combined Motion

All six actuators operate together to create complex, multi-axis movement.

This coordinated behavior allows the platform to simulate real-world motion conditions.

Kinematics: The Math Behind Motion

6DOF platforms rely on inverse kinematics to convert desired motion into actuator commands.

Process

Target motion is defined (position + orientation)
Control system calculates required actuator lengths
Commands are sent to each actuator
Sensors verify actual position
Corrections are applied in real time

This enables precise control over the platform’s position and movement.

Control Systems and Feedback

6DOF platforms use closed-loop servo control systems to maintain accuracy.

Key Elements

Position sensors on each actuator
Real-time feedback loops
High-speed control processors

Typical Performance

High update rates (often up to 1 kHz)
Continuous error correction
Smooth and stable motion output

This ensures that the platform behaves exactly as commanded.

Motion Cueing: Creating Realistic Sensations

In simulation systems, platforms cannot fully reproduce all real-world acceleration forces.

Instead, they use motion cueing algorithms to simulate the perception of motion.

Techniques Include:

Tilt coordination (using gravity to simulate sustained acceleration)
Washout filters (returning the platform to center without detection)
High-frequency cues (short bursts for bumps and vibration)

These methods allow limited motion systems to create convincing real-world sensations.

Performance Factors in 6DOF Systems

The realism and capability of a 6DOF platform depend on:

Motion Range

Maximum travel distance and rotation angles

Speed and Acceleration

How quickly the platform responds

Bandwidth

Ability to follow rapid input changes

Payload Capacity

Weight the system can support

Precision and Repeatability

Accuracy of motion over time

High-performance systems balance all of these factors for optimal operation.

Applications of 6DOF Systems

6DOF systems are used in environments requiring accurate motion simulation:

Flight Simulation – pilot training and certification
Military Training – tactical and vehicle simulation
Research & Development – system validation and testing
Automotive Testing – vehicle dynamics and human factors
Entertainment Systems – motion rides and immersive experiences

Advantages of 6DOF Systems

Full range of motion capability
High realism and immersion
Precise and repeatable performance
Flexibility across multiple applications

Servos & Simulation and 6DOF Technology

Servos & Simulation designs servo-driven motion platforms that deliver:

High-precision multi-axis motion
Smooth, low-latency response
Integration with advanced simulation systems
Long-term reliability in demanding environments

Our systems are engineered for applications where motion accuracy and system performance are critical.

FAQ

A 6DOF motion platform is a system that can move in six directions—roll, pitch, yaw, surge, sway, and heave—to simulate real-world motion.

It uses six actuators arranged in a Stewart platform configuration, each adjusting length to control position and orientation.

Inverse kinematics is the mathematical process used to calculate how each actuator must move to achieve a desired platform position.

Yes. Combined with motion cueing algorithms, they provide realistic motion sensations suitable for high-fidelity simulation.

They provide the full range of motion required to accurately replicate aircraft behavior for training and certification.
